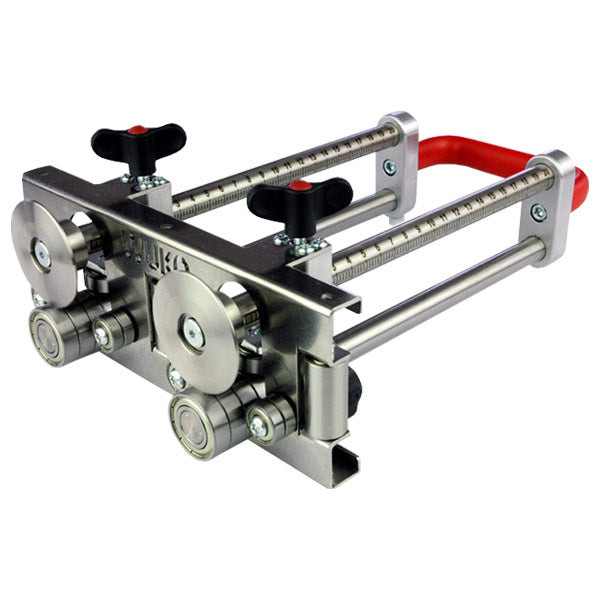

Wuko Hem Bender 8200

A combination of the WUKO 2204 Uni Bender & WUKO 4010 Disc Bender. The WUKO Hem Bender 8200 first can bend 0 - 90° with a maximum bending height of 200 mm. From here you have the option to bend  90 - 180° (max. height 14 mm) to create a squash fold or hem.

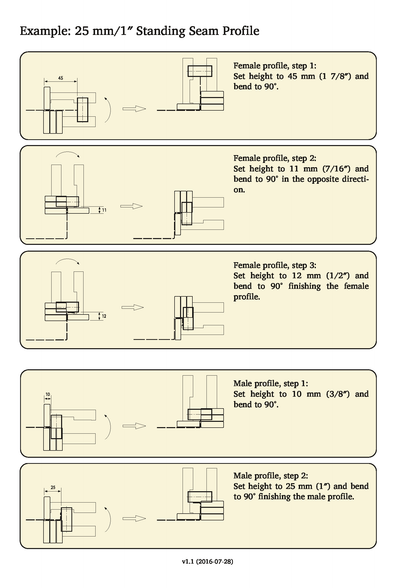

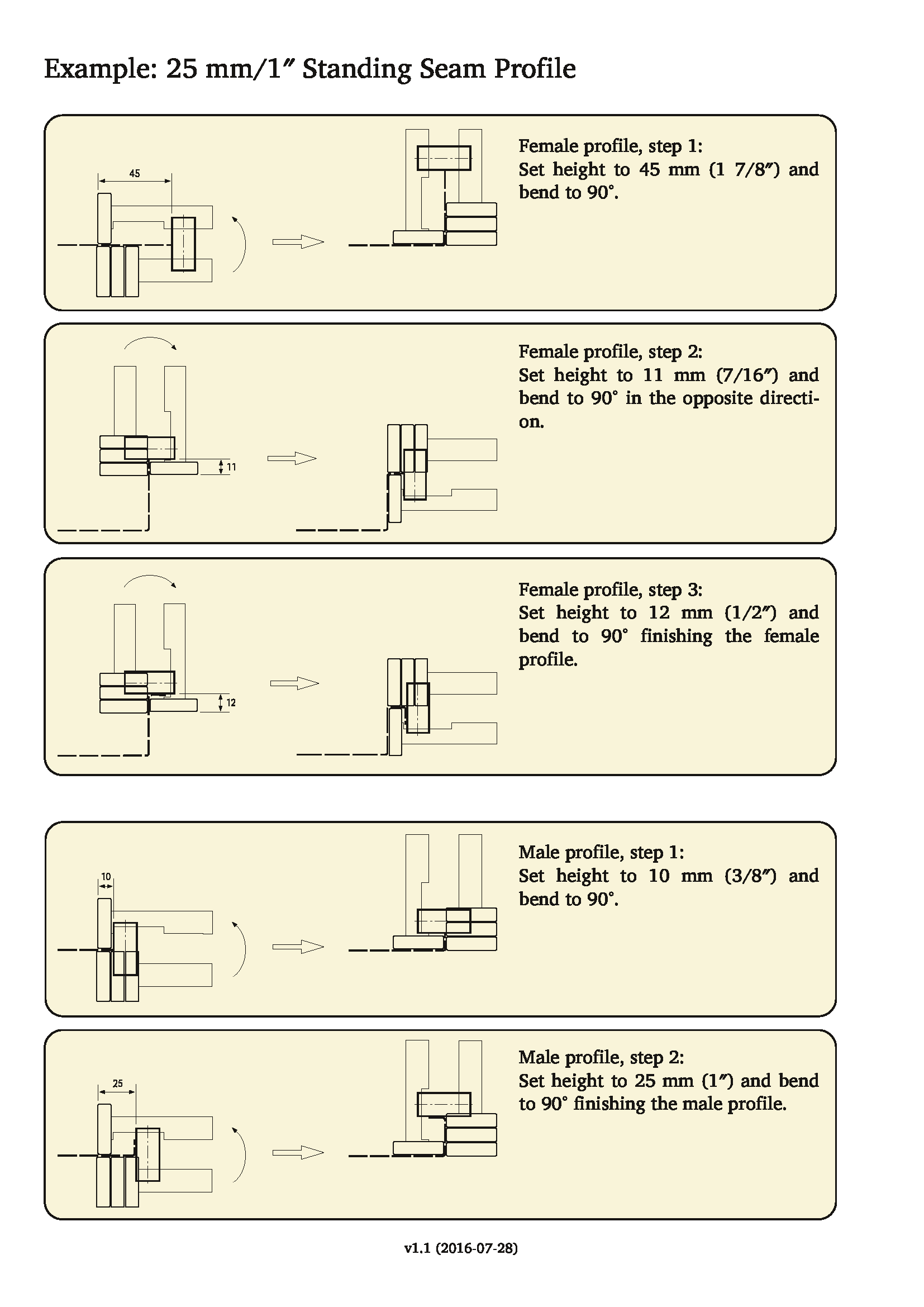

Application example 1:

Application example 2:

Technical data:

• maximum plate thickness: 0.80 mm (limited, depending on material)
• bending height 0 - 90 °: 6 - 200 mm
• bending height 90 - 180 °: max. pre-bending (min. 90 °) 14 mm
