Schechtl TBS 100 Manual Portable Segmented Bending Machine

**Freight not included, will be invoiced accordingly***

Schechtl TBS 100

The TBS 100 is the smallest of the manual segment folding machines in the Schechtl range. Thanks to its small dimensions, the TBS can be moved effortlessly on the construction site - between floors, on scaffolding and in confined spaces. The working length is 1000 mm.

Benefits

• Bending boxes, cassettes & co. on the job site
• Rational and productive – all segments are adjusted without the use of tools

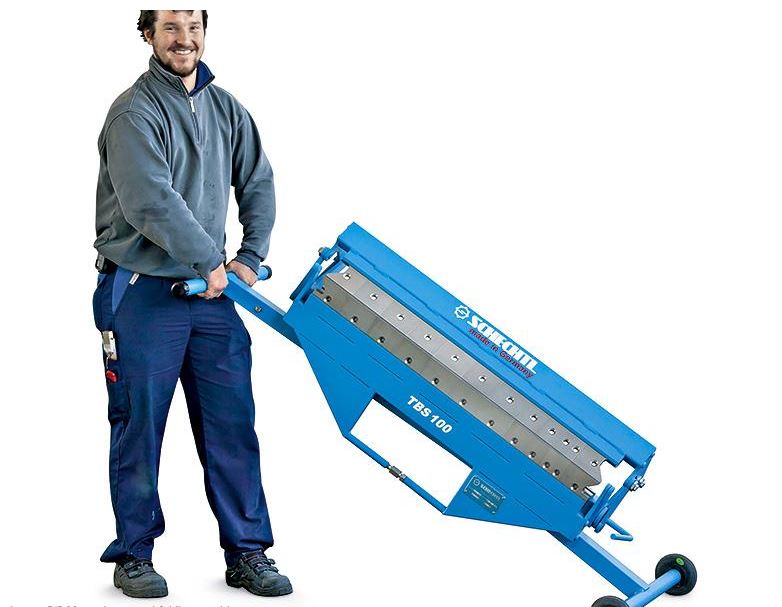

• Without effort: 1 man working alone can transport the TBS quite easily

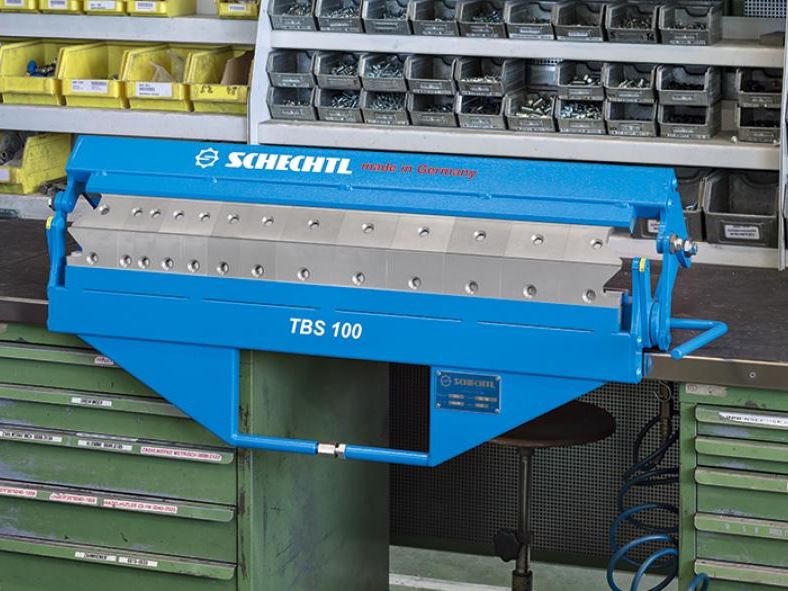

• Flexible: Easy installation on any workbench or in a van
• Safe storage of the segments in a separate case

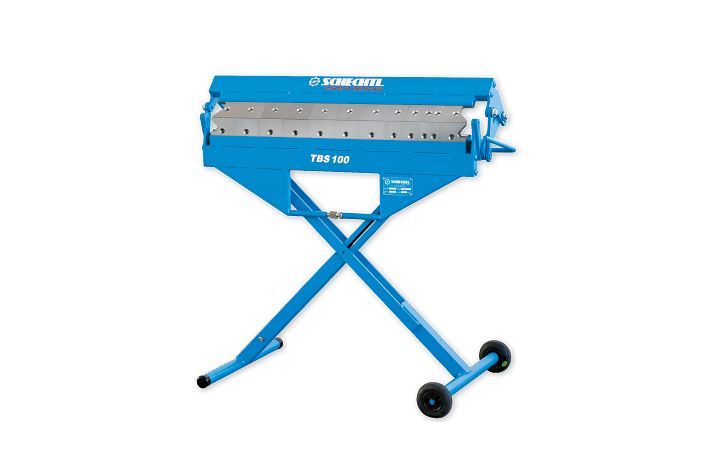

Manual Portable segmented bending machine with X-Shaped support stand

• With quick clamping system
• 1000 x 0,63 mm steel 400 N/mm²
• 1000 x 1,00 mm alu 250 N/mm²
• 1000 x 0,50 mm stainless steel 600 N/mm²
• 1000 x 0,80 mm copper 300 N/mm²
• 1000 x 1,00 mm zinc 300 N/mm²
• segment height: 40 mm

Length of segments:

• 5 x 100 mm
• 2 x 50 mm
• 1 x 30/40/60/70 mm each
• 1 x corner right 100 mm
• 1 x corner left 100 mm
